HDPE geomembrane anti UV fish/pond liner/tank film/roofing/underground/bridge waterproofing membrane China factory free sample

HDPE liner geomembrane is an excellent product for large applications that require UV and Ozone resistance, chemical resistance, or high-quality installations. HDPE liners are a cost-effective choice for exposed lining projects. This product has been used in aquaculture fish and shrimp ponds.

Specification:

Place of Origin:	China
Certification:	ISO9001, ISO14001
Model Number:	FH-HDPE2
Thickness:	0.1mm-3.0mm
Width:	1.0m-7.0m
Length:	50m,100m, or customized
Color:	black
Packaging Details:	Tape Plastic Bag
Minimum Order Quantity:	100 square meters
Delivery Time:	7 days after order confirmation
Payment Terms:	T/T, L/C, D/P, or others
Price:	FOB Qingdao USD1.00-5.00/SQM
Supply Ability:	1 million square meters per month

Features:

Good mechanical properties, high tear strength, deformation and adaptability, puncture resistance, anti-aging, anti-ultraviolet-resistant, Anti-oil and salt, pH, anti-corrosion, high temperature-resistant, non-toxic, long service life. Water, drainage, seepage, the good effect of moisture, width, the thickness of the full range of specifications and low cost, simple construction.

Usage

1. Prevent leakage disposal in waste burying filed or waste burying filed or waste water or waste dregs disposing of filed.

2. River bank, lake dam, mine remaining, reservoir, tunnel, liquid storage pool (pit, mine)

3. Preventing leakage in roadbeds and other ground-sill.

4. The plane direction laying off of da, the vertical direction laying for ground-sill, used in the construction fence and waste material filed.

5. Used in seawater or freshwater felt fields.

6. Used in ground-sill of rad, highway, railway, and waterproof layer of swelling clay and wet collapsed loss.

7. Preventing leaks on the rooftop

Technical Data:

Properties	Test Method	HDPE-Smooth
Thickness (min.ave.)	ASTM D 5199 Mm(mil)	0.75(30)	1.00(40)	1.5(60)	2.0(80)	2.5(100)
Density	ASTM D 792 g/cm3	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Tensile Properties (min.ave.)	ASTM D 638 Tipo IV
Yield Strength	Kn/M(lb/in)	11(63)	15(84)	22(126)	29(168)	37(210)
Break Strength	Kn/M(lb/in)	20(114)	27(152)	40(228)	53(304)	67(380)
Yield Elongation	%	12	12	12	12	12
Break Elongation	%	700	700	700	700	700
Tear Resistance (min.ave.)	ASTM D 1004 N(lb)	93(21)	125(28)	187(42)	249(56)	311(70)
Puncture Resistance (min.ave.)	ASTM D 4833 N(lb)	240(54)	320(72)	480(108)	640(144)	800(180)
Carbon Black Content	ASTM D 1603 (%)	2~3	2~3	2~3	2~3	2~3

Applications:

1) Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning, industrial, hospital solid waste, etc.).

2) Water (such as rivers, lakes, and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.).

3) Municipal Engineering (subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.).

4) Landscape (man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.).

5) Petrochemical (chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.).

6) Mining (washing and pool heap leaching, the ash field, dissolved, precipitation, the yard, the tailings seepage substrates, etc.).

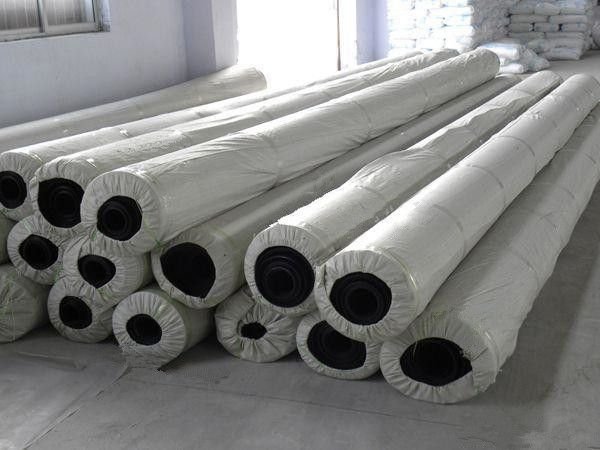

Packing Detail:

Normal is Width 5.8M X length 50M/100M Per roll in white/black Plastic Woven bag.

Other Rolls Sizes and packing can be as per your request.

Why Choose Us?

1. Experienced sales products supplier.

2. Professional Designer and sales department for your service.

3. Alibaba Golden supplier, factory recognized by CE and ISO.

4. 24 hours on line, all questions will reply you within 24 hours in time.

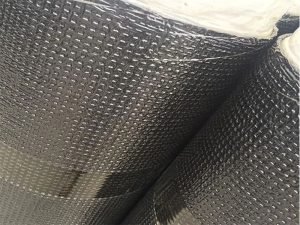

Fuhua, one of the largest China manufacturers and suppliers, now brings you hdpe geomembrane anti uv fish/pond liner/tank film/roofing/underground/bridge waterproofing membrane china factory free sample from its professional factory. Please rest assured to buy. APP modified bitumen membrane best from ChinaTPO waterproof membrane

If you want to know more about it, please contact us at carlos@onices.com
