building waterproofing material

Laminated Asphalt Shingle


self adhesive roofing waterproof membrane

Short description:

Length:1000mm±3mm

Width:340mm±3mm

Thickness:5.2mm±0.1mm

Pack:16pieces per bundle

Sq.m/Bundle:2.32 square meters per bundle

Weight:27kg per bundle ±1kg

Social Share

Product Details


SINOMTC is one of the largest China manufacturers and suppliers of building waterproofing materials. We have been in the roofing system business for more than 20 years. Here is the specification of our 3 tab asphalt shingles for reference.

Product NameLaminated Asphalt Shingle
MaterialNatural Stone Granules+95g/m2 Fiberglass+Asphalt
ColorBlack, Red, Blue, Green, Customized
Length1000mm(±3.00mm)
Width340mm(±3.00mm)
Thickness5.20mm(±0.1mm)
Weight27kgs/bundle±1kg
Temperature Range-45℃-90℃
Tensile Strength(Longitudinal)(N/50mm)>=530
Tensile Strength(Transversal)(N/50mm)>=550
Heat ResistanceNo flow, slide, drippage, or bubble(90°C)
FlexibilityNo crack being bent for 10°C
Nail Resistance78N
Resist To Tearing>100N
Weather Exposure145mm
Wind Resistance130km/h
Warranty35 years
CertificateISO9001
UsedResidential, Commercial construction roof

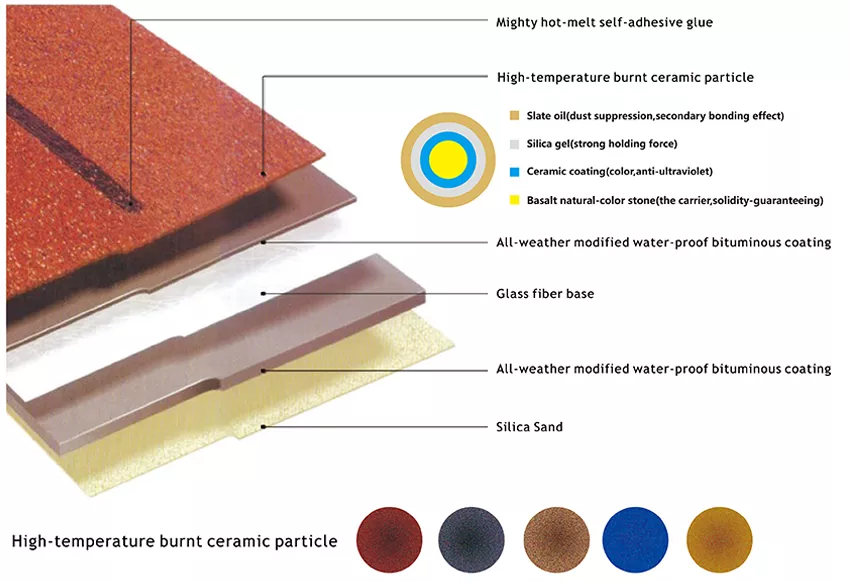

3 tab asphalt shingle structure

What are Asphalt Shingles?

Although wood shingles, slate, tile, metal, and a host of other materials can be used to surface house roofs, asphalt stands out as the roofing material of choice because it is relatively affordable, easy to apply, fire-resistant, comparatively lightweight, available almost everywhere, and durable enough to last for 15 to 40 years.

In the past, uninteresting appearance was the biggest strike against asphalt roofing-it just didn’t offer the visual interest and charm of classic materials such as wood and tile. But things have changed. Today, asphalt shingles are sold in many textures, grades, and styles that are reasonably convincing at mimicking the look and character of traditional materials.

Asphalt Shingles are Very Affordable. One of the most popular benefits of asphalt shingles is their affordability. When compared to other roofing types, few are as affordable as asphalt shingles. Although price means very little unless coupled with the following benefits. They Have a Reputation for High-Quality and Durability When you invest in an asphalt shingle roofing system, you not only pay less but also get excellent quality. By quality, we mean they’re durable and will stand the test of time. Moreover, asphalt shingle technology is always improving. A new asphalt shingle roof will last significantly longer than one installed a decade or two ago, as the base is fiberglass and no longer organic.

The Advantage of fiberglass asphalt shingle

1. Economic
The cost of asphalt shingles is lower than many other roofing tiles, and the related charge for transportation and installment are reduced much because of the lightweight and easy installment.

2. Lightweight and easy to install

The weight of the asphalt shingle is much less weight compared with other roofing materials, so it reduces the requirement for load-bearing support of roofing.

And the process of an installment is easy, there are no special accessories are required and it is easy to cut, fasten and fit. Asphalt shingles are considered the easiest roofing materials to install.

3. Wide application

Asphalt shingles could use for wider-angle roofing slopes than other roofing materials, it could be used for 15°-90° roofing slopes. It also could be used in any shape of roofing and there are many colors could of choice.

4. Noise reduction and heat insulation

The stone chips could reduce the noise when raining or hailing, it also could insulate from heat when expose to extreme UV and keep warm in Winter.

The difference between laminated shingles and 3-Tab shingles

Roofing materials and styles both fall into the category of asphalt shingles and share many similarities, but they are different. First, they vary in different important categories, from aesthetic appeal to longevity to water and wind resistance. Both roofing materials have their own characteristics and styles that make them unique.

Let’s look at the differences between them.

Appearance

Beauty is in the eye of the beholder, so you can’t say which one is more beautiful and how. It all depends on what you like because technically it is difficult to choose a clear winner between the two in terms of aesthetics.

3-Tab shingles offer some texture on the roof, but it usually lays flat on the roof when installed and produces a clean finish. 3-Tab shingles come in different colors and they can easily match the look of any home.

However, architectural shingles offer versatility in size and shape, and they can give your roof a luxurious look. This is because it is manufactured in such a way that it can replicate expensive roofing styles such as slate and cedar milkshakes.

It provides a unique look to the home and architectural roofing may enhance the curb appeal of the home and can even make your home different from all other homes in the area. But it all depends on the person’s choice of the type of roof he/she wants for the home.

The Works

First, let’s look at the composition of 3-tab shingles. It consists of asphalt, adhesive and an outer layer of outer granules backed by fiberglass. However, when it comes to architectural shingles, they form a higher quality material, which makes them appear thicker than 3-tab shingles.

In addition, architectural shingles are stronger binders, which contain a large number of finer particles. These particles are packed tightly into each other, which increases their longevity and durability.

Weight

Because architectural shingles are made up of multiple layers, they are thicker and heavier than 3-piece shingles. 3-piece shingles are nearly 50% lighter than architectural shingles. The heavy weight makes architectural shingles more durable and longer lasting than 3-tab shingles, but installing 3-tab shingles is always easier and faster.

Period

Architectural shingles are made up of thicker materials in different layers that are more durable. This makes them better able to withstand all kinds of weather, such as wind, ice, and heat. Therefore, as far as the service life of these two materials is concerned, 3-tab shingles last from 10 to 25 years, while architectural shingles last about 50 years.

Warranty

Because of the short service life of 3-tab shingles, they also come with a short-term warranty. For example, 3-tab tiles come with a 20-25 year warranty, while architectural tiles come with a 40-year warranty.

Wind and Water Resistant

t3-tab shingles are very light, so they tend to be subject to strong winds, and if you live in a windy area, then these are not for you.

However, the thickness and weight of architectural shingles make them perfect for areas with strong winds. Architectural shingles can withstand winds of up to 120 miles per hour, while 3 shingles can only do half that. In addition, architectural shingles use a stronger adhesive for better retention during installation work.

Just like in wind resistance, architectural shingles top the list of 3-tab shingles when it comes to water resistance. Architectural shingles are laminated and coated with tightly packed granules that are incredibly water resistant.

If you want to know more about it, please contact us at carlos@onices.com
